WHAT IS RAMPUP?

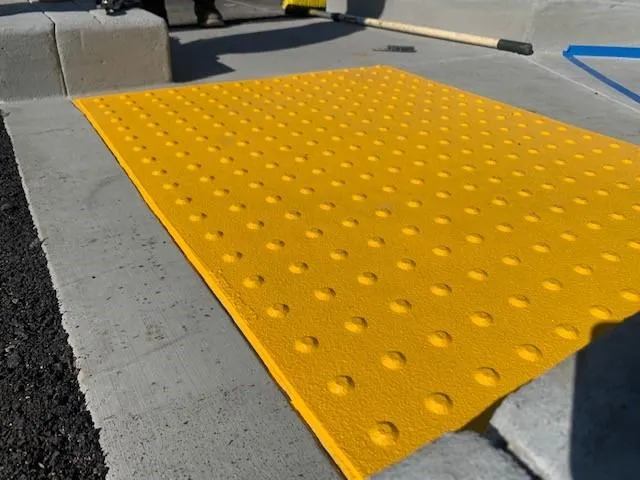

SSTD RampUp is a pre-finished ADA compliant surface mat. This product is designed to be used primarily at wheelchair ramp conditions and once surface prep is completed, this system can be installed quickly.

SSTD RampUp is made of the same components as our Traditional system and still offers the same low profile to avoid trip hazards. It is adhered to the surface using the same proprietary adhesive as our Traditional system and requires no mechanical fasteners or anchors to keep it in place.

Like all SafetyStepTD systems, SSTD RampUp will adhere not only to concrete and asphalt, but to other materials as well, such as tile, brick, granite, and other solid/sound surfaces.

* All surfaces may vary, prep is essential.

RampUp

APPLICABLE STANDARDS

SSTD RampUp
mats are compatible with:

ADA Accessibility Guides(ADAAG) R305

California Division of the State Architect(DSA) IR 11B-2, IR 11B-3, & IR 11B-4.

Florida FDOT Approval APL Certification: 527-000-049

WARRANTY

Our SSTD RampUp
rolls come with a five-year limited material warranty. To see if you qualify, please fill out our Warranty Request Form.

SYSTEM COMPONENTS

RampUp
mats have the thinnest base when applied in the field. These systems are facility manufactured with our
Traditional components:

SSTD589 - Adhesive

SSTD NSGS 30 - Texture

SSTD100 - Coating

SSTD1250 - Sealer

Sizes:

3' x 4'

3' x 5'

2' x 4'

2' x 5'

Patterns:

Wide Inline Pattern (Square) - 2.35 inches on center each way

COLORS

Standard colors: Yellow, red, blue, black, dark gray, and light gray.

*Custom colors are available for installations over 300 sf.

RampUp SYSTEM INSTALLATION GUIDE
